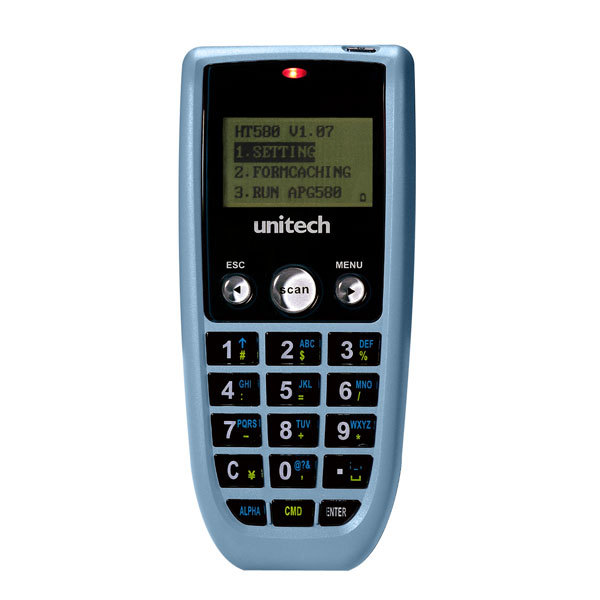

Thiết bị kiểm kho HT580

Thiết bị kiểm kho

Giá bán: 440 USD
Mã SP: HT580
Hãng: Unitech
Xuất xứ: Đài loan
Bảo hành: 12 Tháng

System
Operating System:	Proprietary in C Language
CPU:	ST-uPSD3354DV
Memory:	2MB Flash ROM
Real Time Clock:	System date and time
Display
128 X 64 pixels
Keypad
18-key, including one scan trigger
CCD Scan Engine
Skew Angle:	± 25° @ 15.6 mil (0.39mm)
Pitch Angle:	± 55° @ 15.6 mil (0.39mm)
Rotation Angle:	± 25° @ 15.6 mil (0.39mm)
Reading Distance:	5 mil - Code 39 60mm ~ 100mm 6 mil - Code 39 60mm ~ 130mm 15.6 mil - Code 39 60mm ~ 190mm
1D Laser Scan Engine
Light Source:	Visible Laser Diode 650 nm
Scan Rate:	104 scans/sec.
Max. Resolution:	0.127 mm
Reading Distance:	Up to 55 cm
Skew Angle:	± 55°
Pitch Angle:	± 35°
Symbologies
China Postal Code, Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, IATA 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, Telepen, UK Plessey Code, UPC/EAN
Communication
Bluetooth:	V1.1 compliant with Class 2 up to 10 meters
Cable:	RS232 and USB 1.1 Y-cable
Cradle:	RS232 port for point-to-point communication Modem interface to telephone line
Power Source
Main Battery:	One rechargeable Li-Ion battery pack @ 3.7V, 730mAh
Battery Charging:	From fully discharged to fully charged in about 4 hours
Operation Time:	8 hours
Mechanical
Drop test to concrete:	4 ft. (1.2M)
Dimension:	Approx. 123 mm (L) x 25 mm (H) x 55 mm (W)
Weight:	150g with battery pack
Environmental
Operating Temperature:	0°C to 50°C
Storage Temperature:	-20°C to 70°C
Humidity:	20% to 85% RH non-condensing
